ONDA in-wall speaker series is born to satisfy all those indoor installations where sound pressure and quality higher than normal 70/100V systems are requested.
The ONDA speakers are all low-impedance (8ohm), coaxial, with Kevlar woofers, silk-dome tweeters, precision crossovers; essentially true 2-way speakers for professional applications, but ceiling/wall ... Read more
ONDA in-wall speaker series is born to satisfy all those indoor installations where sound pressure and quality higher than normal 70/100V systems are requested.
The ONDA speakers are all low-impedance (8ohm), coaxial, with Kevlar woofers, silk-dome tweeters, precision crossovers; essentially true 2-way speakers for professional applications, but ceiling/wall mount.

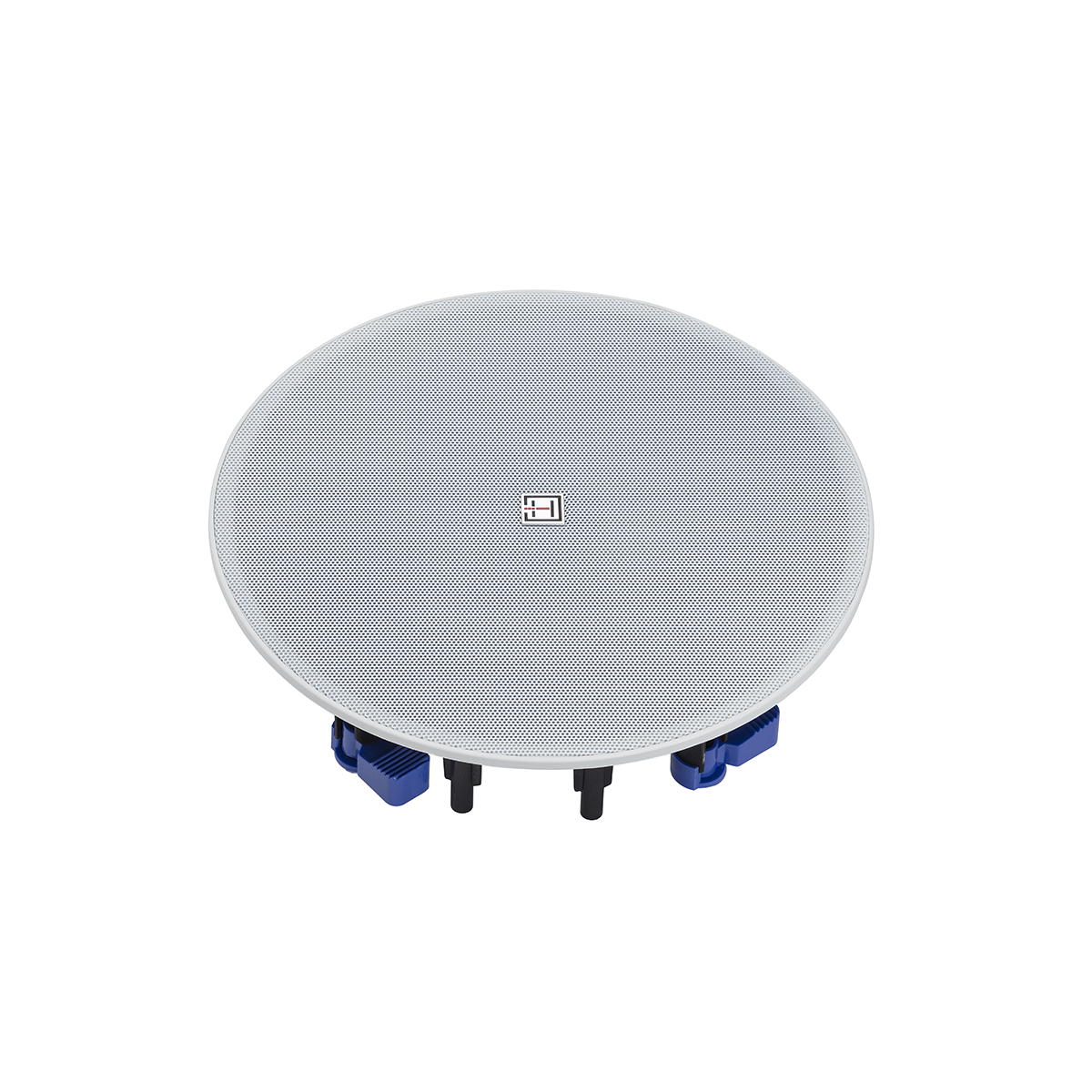

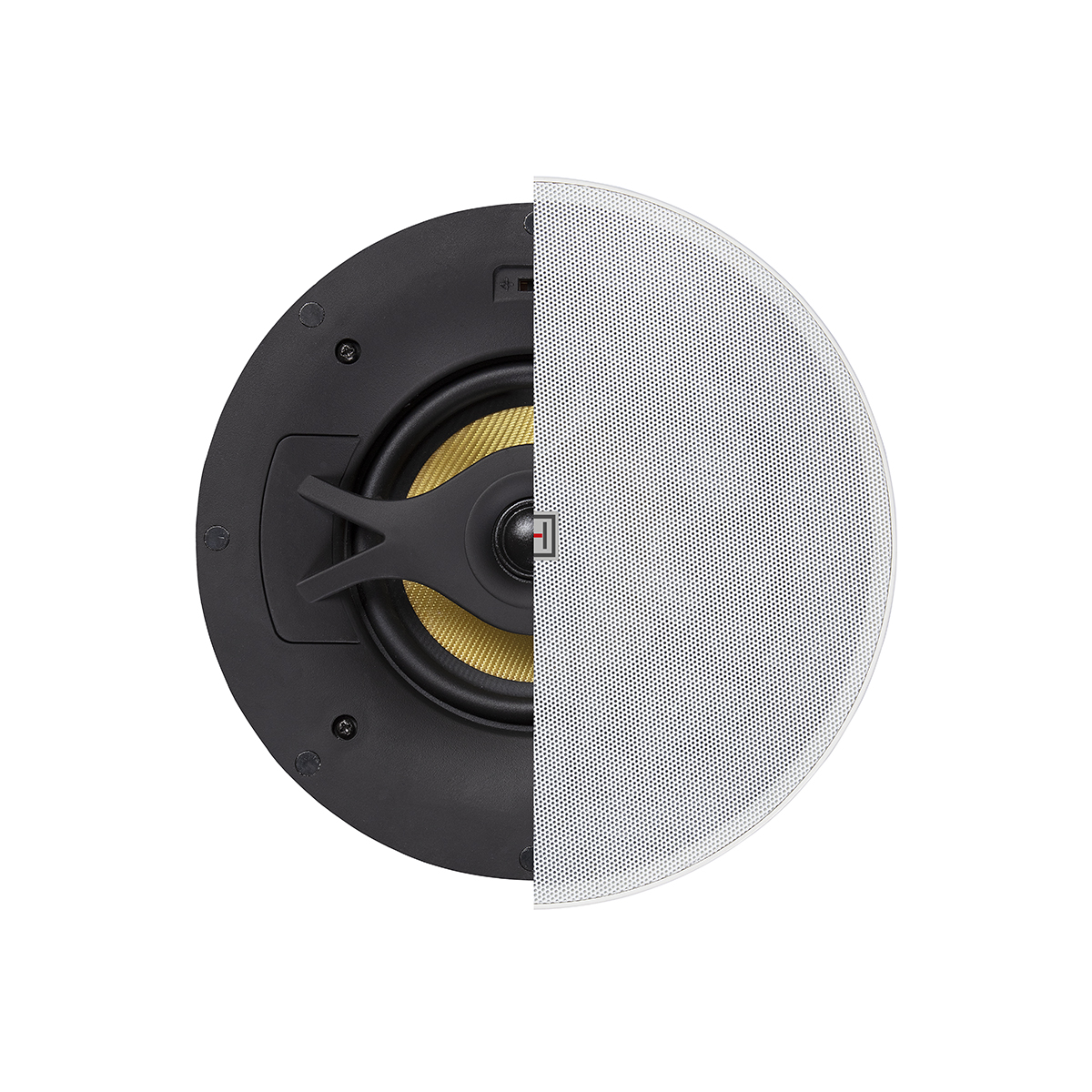

The look of the front panel is minimalist and captivating, and reminds recording studio monitor. The frame-less design, with black ABS frame and white magnetic grids, makes the ONDA speakers extremely discreet. Finally, the grids can be repainted to make them even less visible.
Read less2-Way Hi-Fi Coaxial Low-Impedance Loudspeaker | |
Frame-less Design with Magnetic Grille | |
Quick-Fit Mounting System with 4 Screws | |
40W RMS Power | |
High Excursion Kevlar Woven Cone Woofers | |
5.25” (135mm) Woofer Diameter | |
0.76” Silk-Dome Tweeter | |

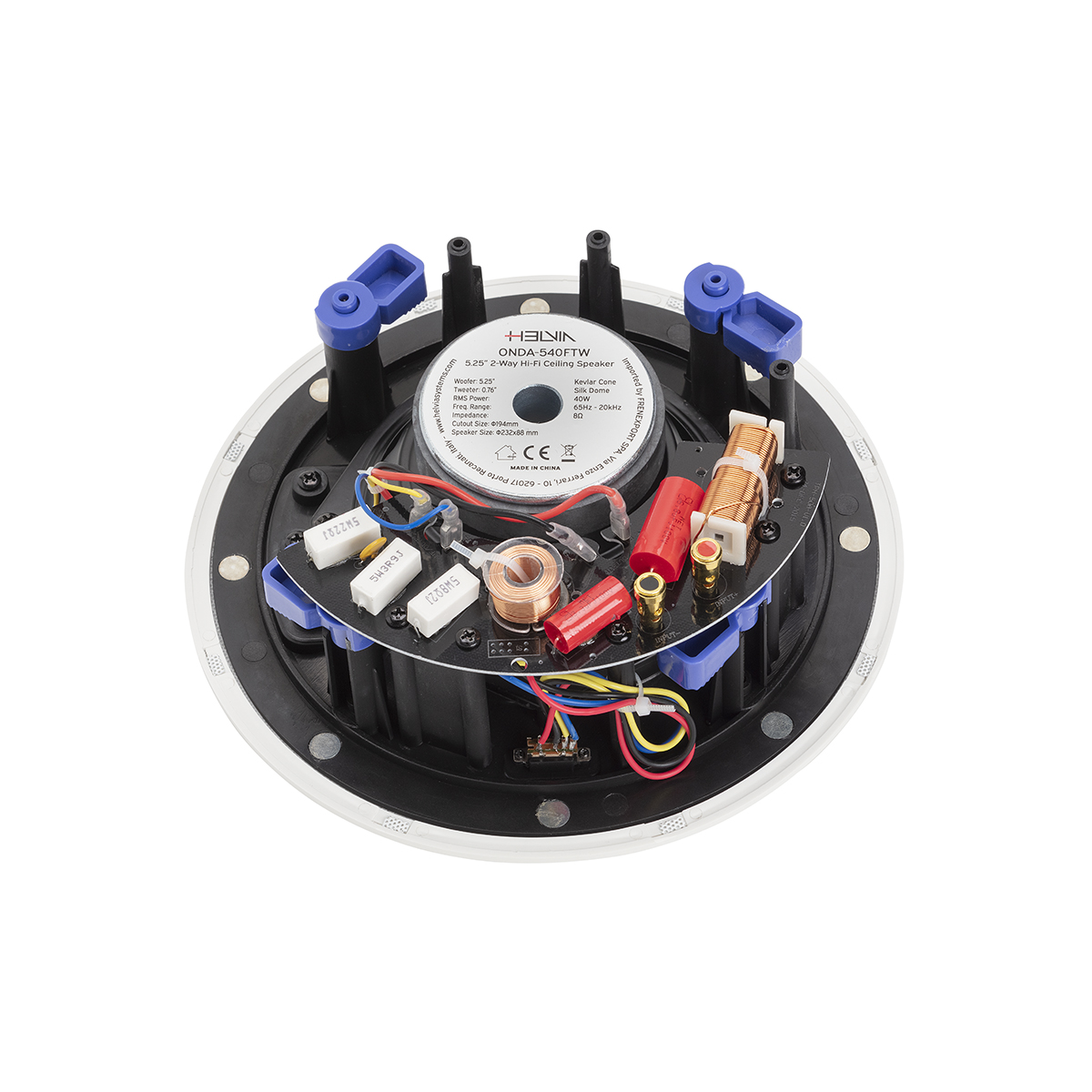

Built-In Precision Passive Crossover | |
+/-2dB High-Frequency Attenuation Selector |
Speaker Type | 2-Way Passive, Coaxial |
Frequency Response (-10dB) | 65Hz-20kHz |
Sensitivity (1W @ 1m) | 91dB |
RMS Power | 40W |
Impedance | 8 ohm |
Woofer | 5.25” (135mm), Kevlar Woven Cone |
Tweeter | 0.76” (20mm), Silk Dome |
High-Freq. Attenuator | 2-position switch (0dB/-2dB) |
Housing | ABS |
IP rate (speaker installed) | IP54 |
Mounting | Quick mounting system with 4 screws |
Grille | Frameless Design, Magnetic Mount, Perforated steel with acoustic transparent foam inside, paintable |
Color | Black Housing / White Grille |
Cutout Size | Ø 194 mm |
Product Size (WxDxH) | Ø 232 x 88 mm |
Speaker Weight | 1,23 kg |
Packing Size (WxDxH) | 255 x 250 x 92 mm |
Packing Weight | 1,43 kg |
